click to enlarge Droop wingtips............................$269 pr
Efficiency of the wing is improved by reducing vortex and smoothing airflow at the wingtip. Lift is increased and drag reduced resulting in shorter take-off distance, higher climb rate and faster more efficient cruise speed. Fits all team models. Made with 2 ply 7500 fiberglass cloth, epoxy resin, white epoxy primer finish, Weight 5 lbs

Also available in carbon fiber for $349 which saves 1.5 lb of weight and yet its stronger and more hangar rush resistant. for mounting instructions click here



click to enlarge
leading edge/fuselage fairing......................$69
finishes the unsightly gap between the wing and the MiniMax fuselage





click to enlarge

Minimax foot step......................$48
This foot step is bigger and an inch deeper also has the flange all the way around not just the top part

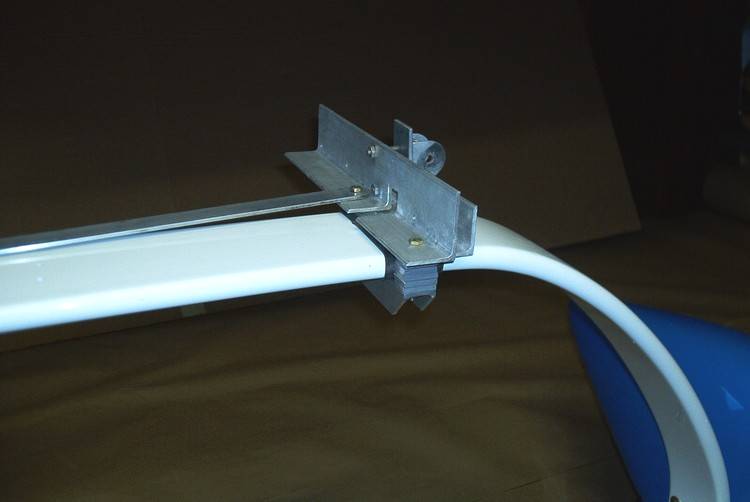

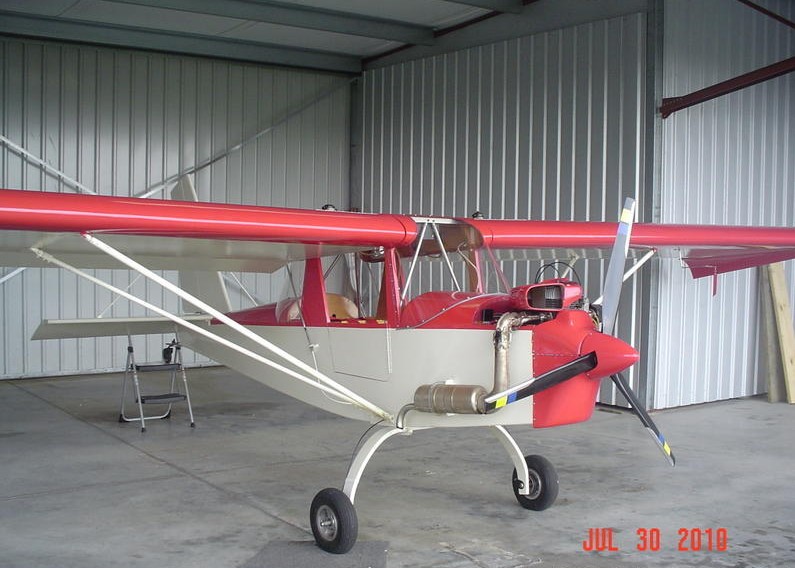

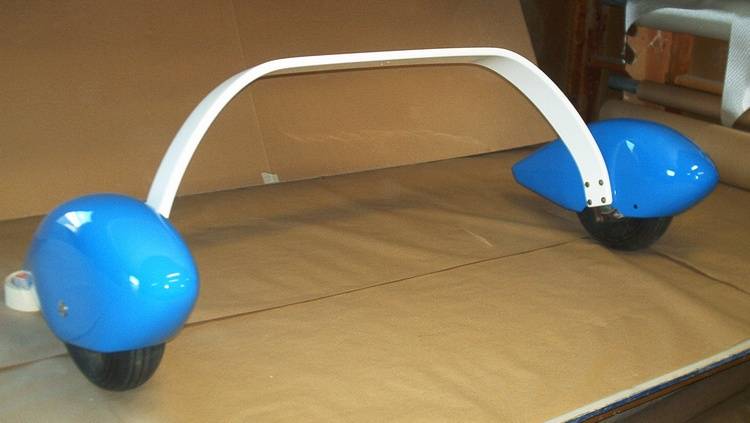

click to enlargeCarbon fiber composite landing gear spring............$690 spring only

Your HiMax will ride like a Cadillac if you install this fiberglass spring gear. This fiberglass gear flexes more then the comparable one made out of aluminum but its much lighter. It is a little wider for easier directional control. Cleaner installation increases cruise speed and softer landing reduce bouncing. Total height 20 inches, the axel placement is in the range of 15.5 - 18.5 inches, total width 48 inches (unloaded), designed for up to 700 lb gross weight. Weight 11 lbs

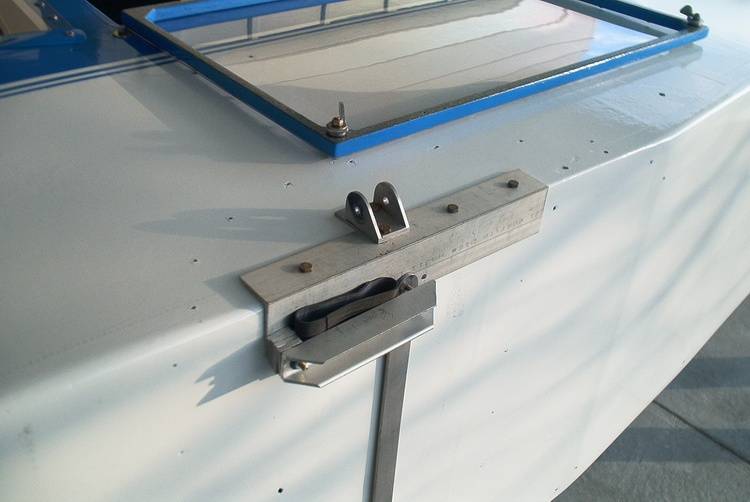

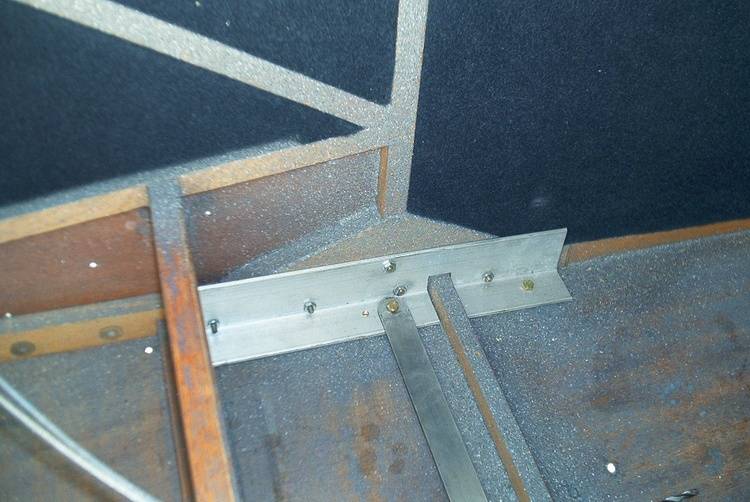

HiMax gear intalation pix [1] [2] [3] [4] [5] install intructions
I can custom make a gear spring at about 40% weight reduction over an aluminum one.

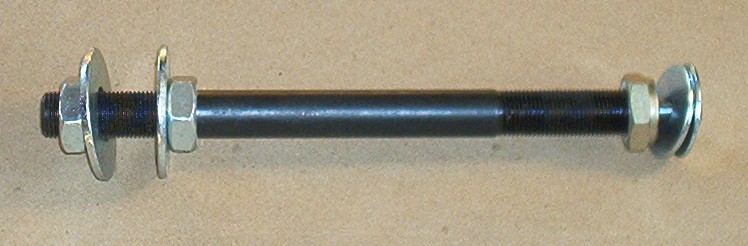

click to enlargeAxels for the gear.........................$80 pr

5/8 od" allows for replacing of the original Flintstone type bushings with real wheel bearings








click to enlarge trike gear spring......................$590.
this one is for 103 trikes, powered chutes, and fighter type ultralights like Phantom Hurricane and Flightstar. Width 47", axel height 9-13", weight only 5 Lbs.

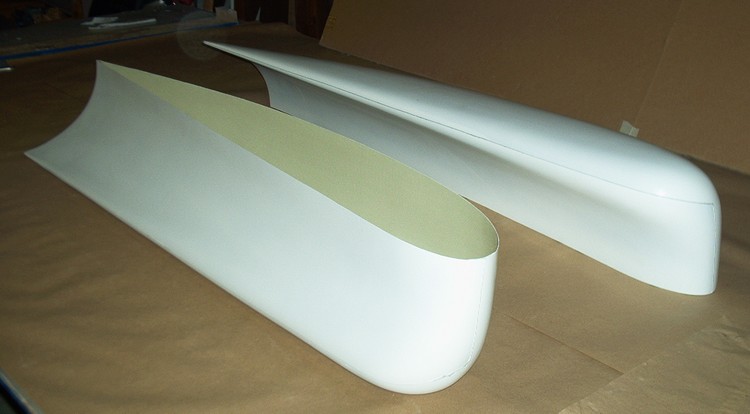

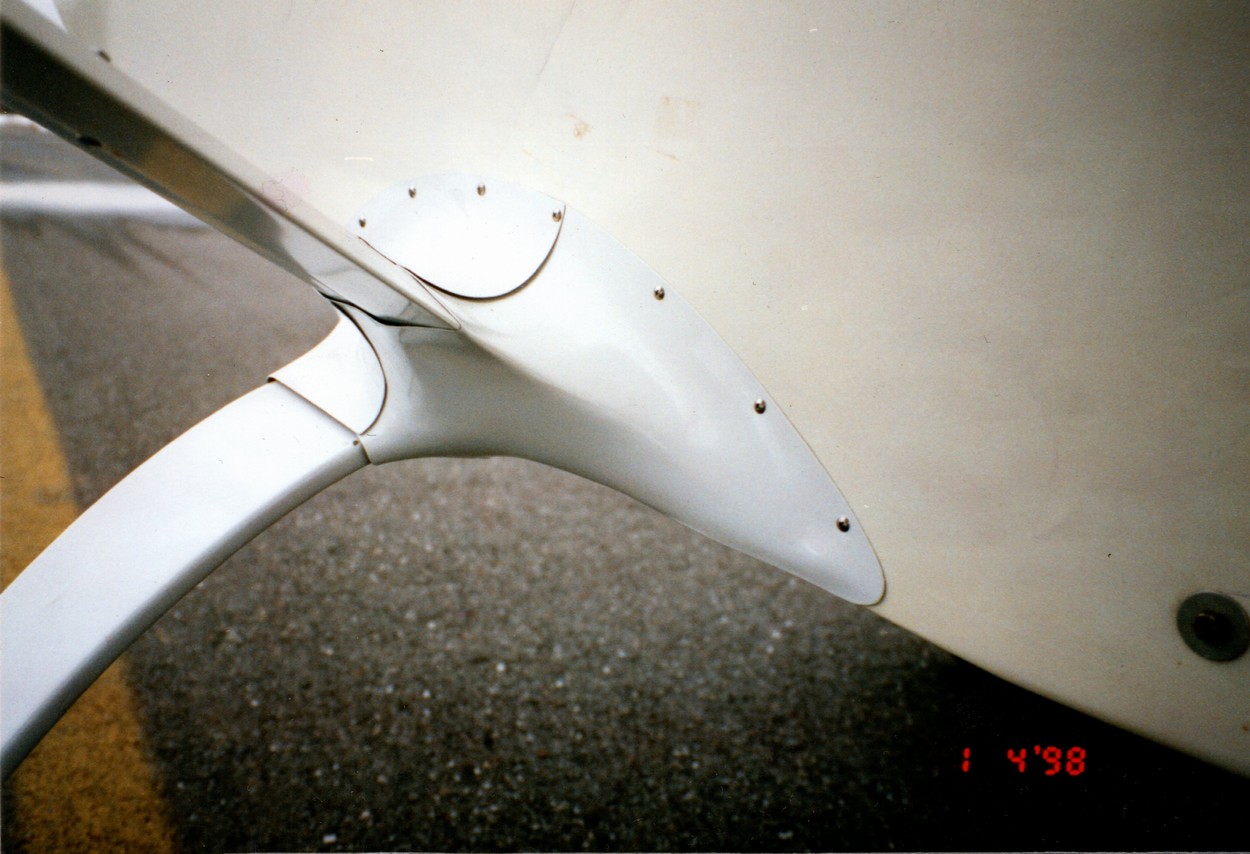

click to enlarge Gear/struts fairings . . . . . . . . . . . $190 (4set) pr
Fits to strut streamlined fairings that are 4� and 3� wide. Best to have on hand while installing the gear to assure proper fit.

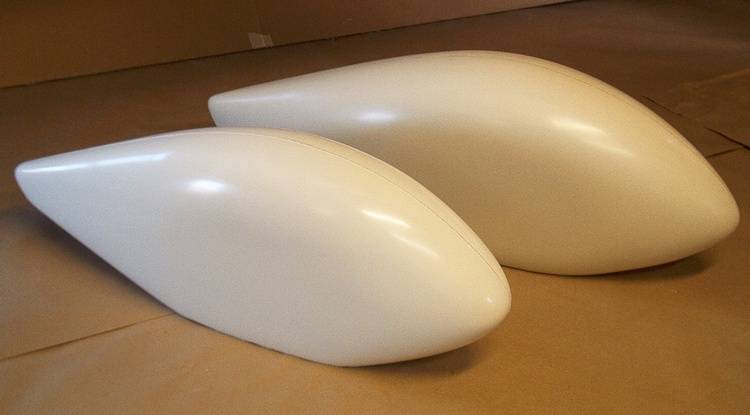

click to enlargeFiberglass wheel pants.....................5 inch rims 12-13 inch wheel 6 inch wide $169 pr
Fiberglass wheel pants.....................6 inch rims 14-15 inch wheel 8 inch wide $189 pr

Strong, light weight, made from 3 ply 7500 fiberglass cloth, epoxy resin, white epoxy primer finish. The smaller one is 6 inches wide, 10 inches high, 28 inches long,, The bigger one is 8 inches wide, 11 inches high, 33 inches long.

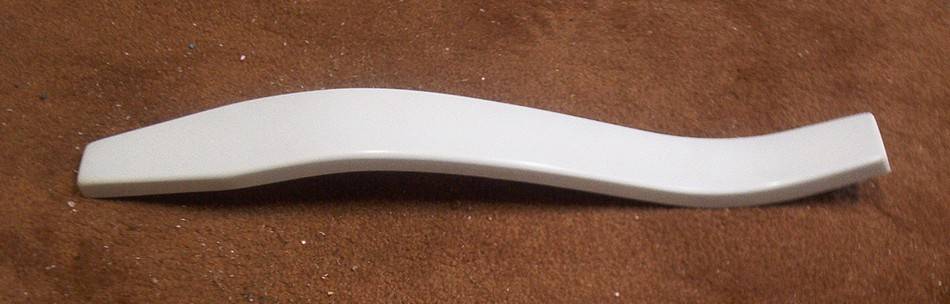

click to enlarge Carbon fiber/fiberglass tail wheel spring...............$125 ea
Nice flexible, light weight and solves the common problem of the aluminum spring getting bent. Weight 10 oz

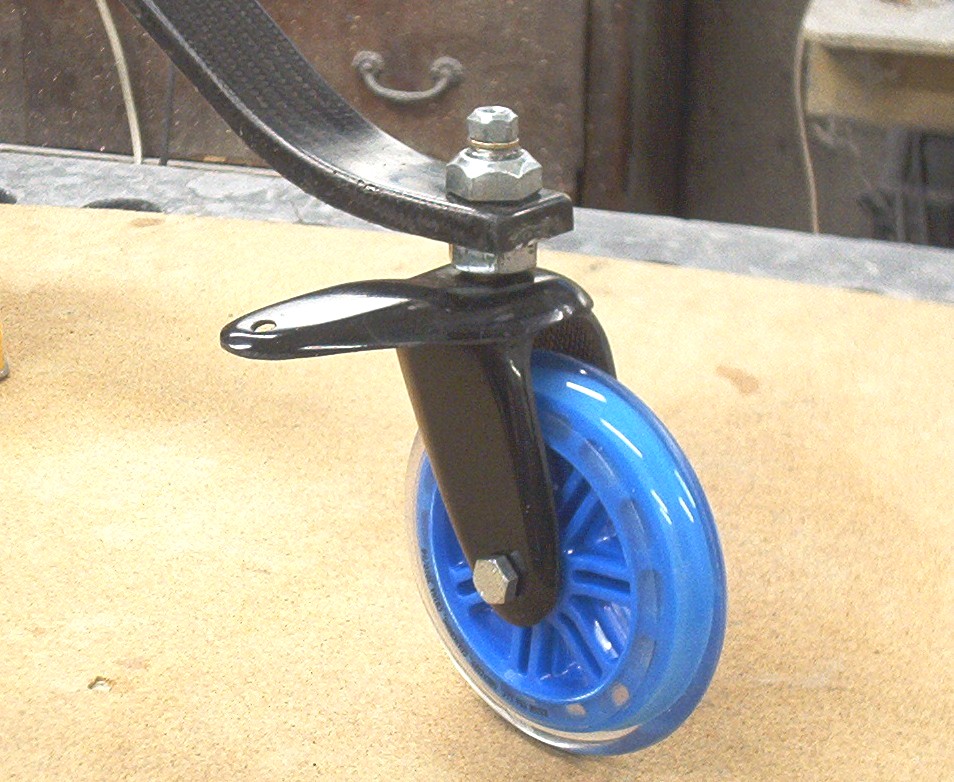

click to enlargeMolded carbon fiber tail wheel bracket with 4.75" wheel ...............$169 ea

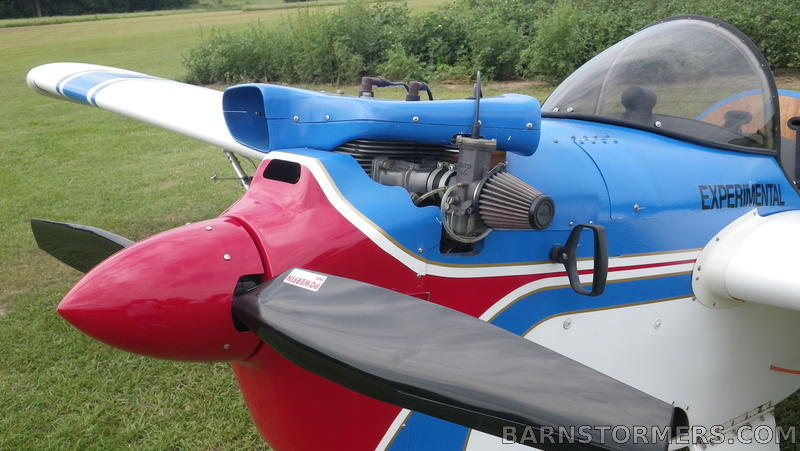

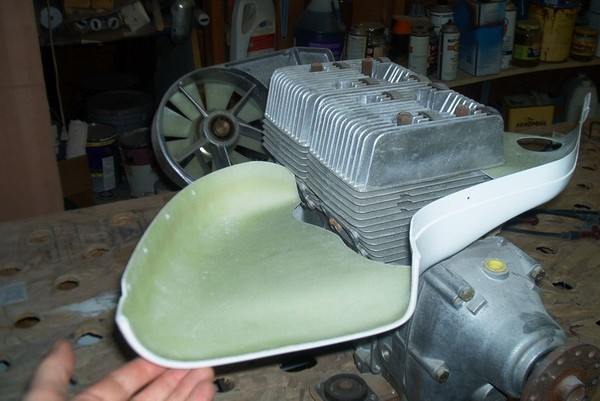

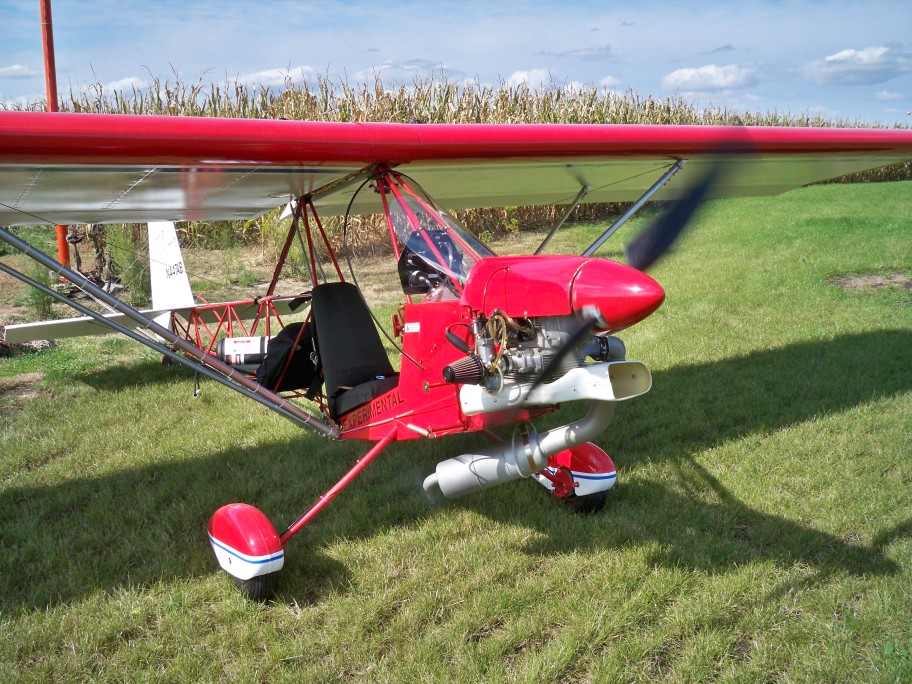

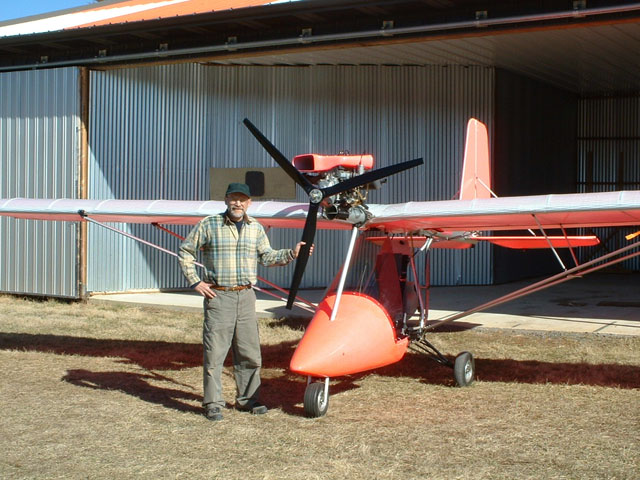

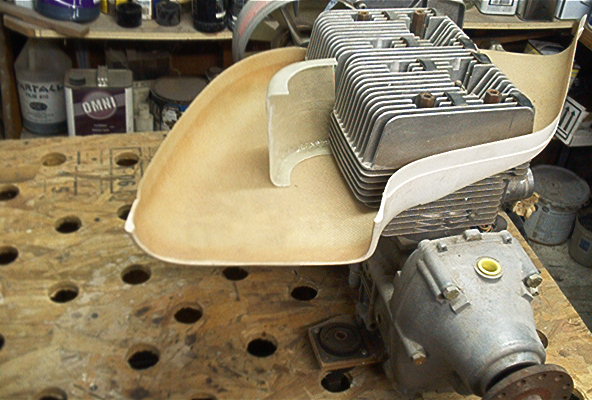

click to enlargeSupercowl (Rotax 503 or 447)......................$195
Using free air cooling scoop frees up two more horsepower which are being robbed by the cooling fan and removes 7 lb of weight by eliminating the fan tower, fan belt and metal shrouds.

Installation application samples - [MiniMax] [Airbike][HiMax][Flighstar]
Installation pics - [1][2][3

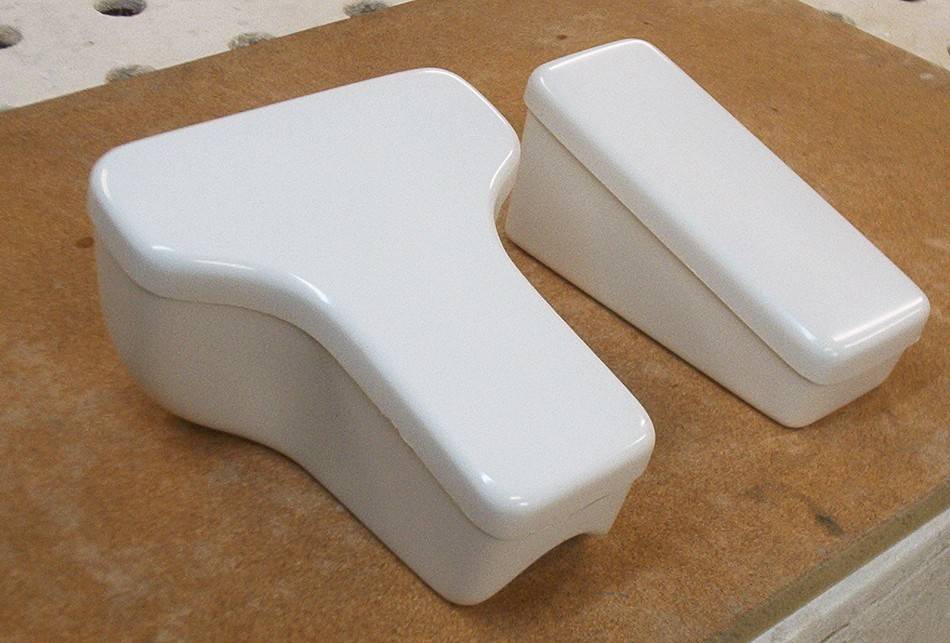

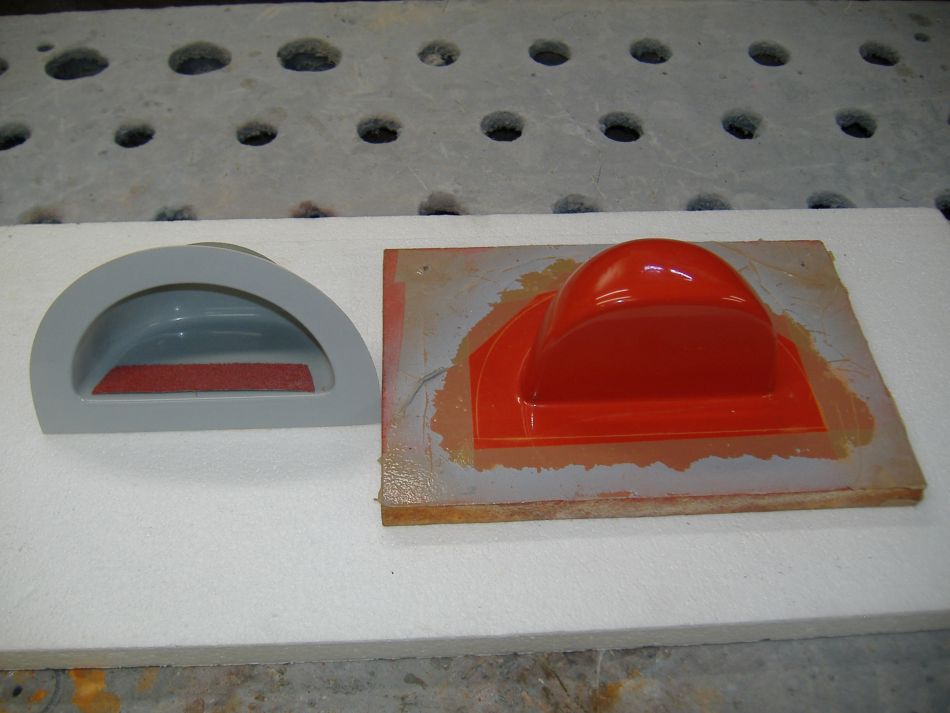

click to enlargeTrike instrument pods......................$149 each
Two styles, the straight small one has room for three round gauges or two gauges and tiny tach , The bigger T-shaped one can take up to 5 gauges but is mainly intended for EIS plus whatever. The small one is available with flat bottom or curved for a 2" tube mounting, The bigger one is curved bottom only and may need a flat piece of back up plate when mounted on a squared tube. They come in white finish.





click to enlargeCarbon fiber instrument panel decorative overlay.....typical single seater size $75 two seater $115
Creates the deep 3D clear carbon look. The picture doesn�t do it justice as it is impossible to capture the effect with a camera.









To order, e-mail is preferred, include full shipping address so I can get the total with shipping cost back to you
sychrovsky@mindspring.com (use for business only)
Or call 978 425 0229 , best time to call is between 2 and 5 afternoon

Mailing address
Cured Composites
1997 Shirley rd
Lancaster MA 01523

My work load is unpredictable, if you know you need a part order early.
